Installation Guide

Installation Guide Step 1

Step 1

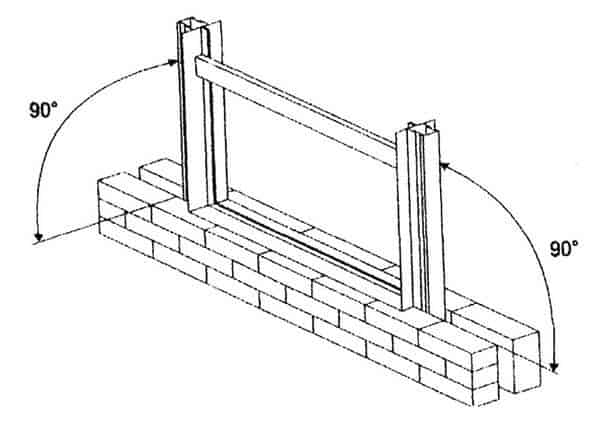

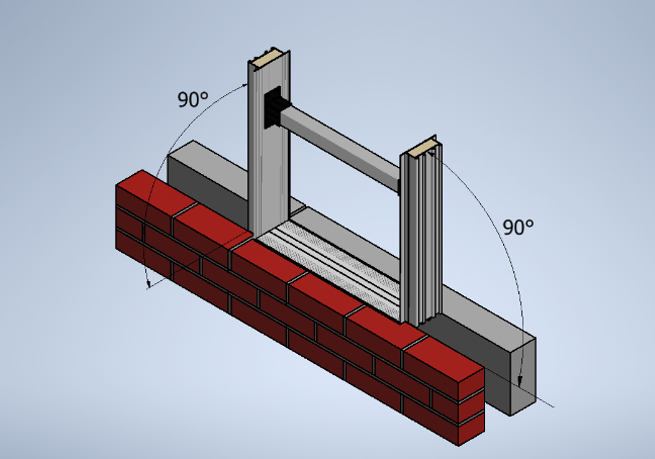

Sit the closer into the cavity at sill height.

Using a spirit level to ensure that one leg and the sill of the closer are plumb and square.

Installation Guide Step 2

Step 2

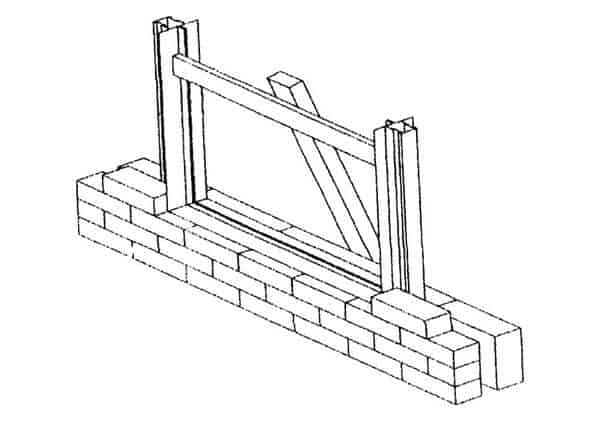

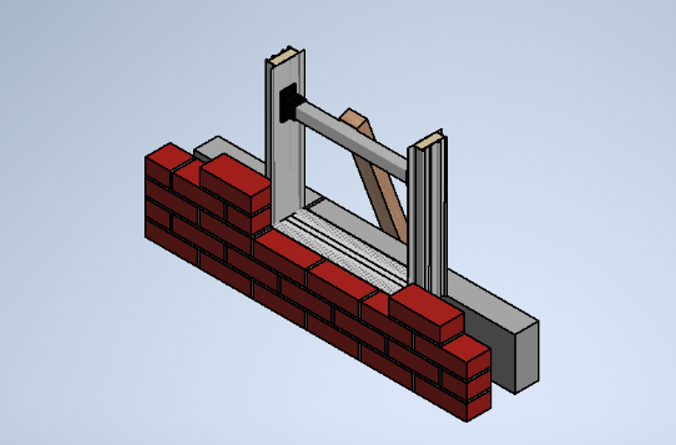

Hold the closer in place with a batten/plank as shown. If further adjustment for square us required simply remove one side of the timber bracing.

Installation Guide Step 3

Step 3

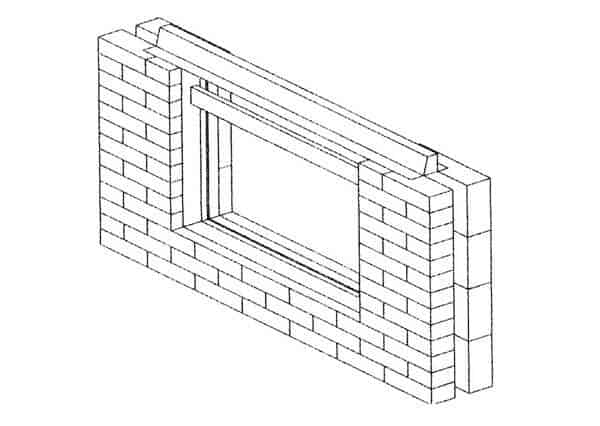

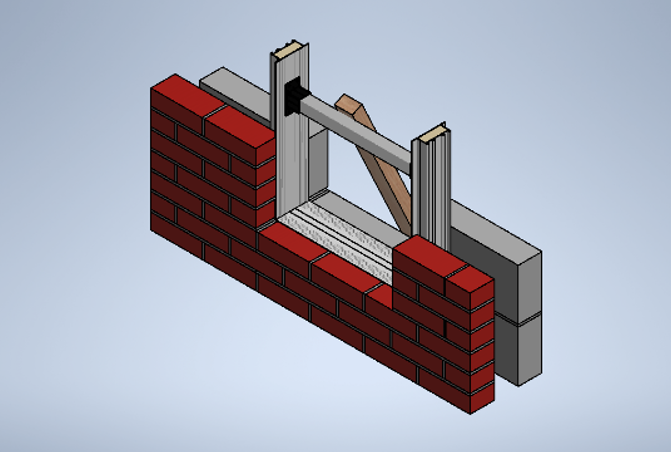

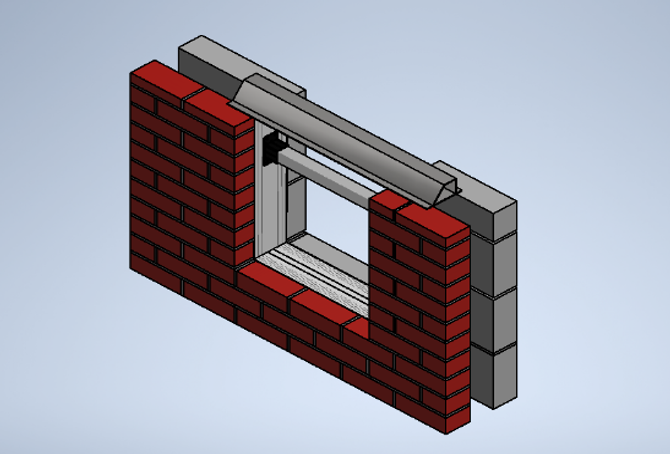

Brick/block up to the top of the closer using it as a brick-work guide, continue to check for level.

Brick ties to be fitted at 250mm centres staggered front and back.

For quotations, product information or technical support please call us on 01773 590100, fax 01773 590200 or email sales@subframes-uk.com.
